Product Description

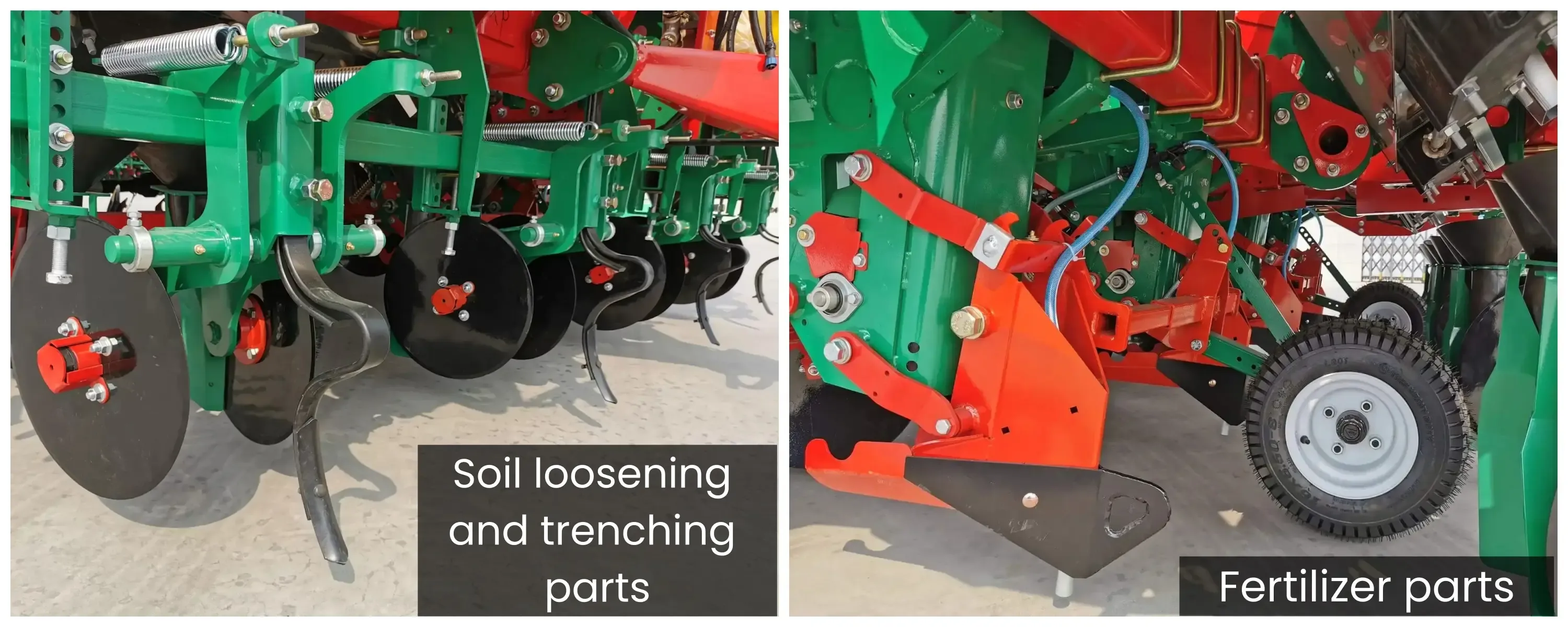

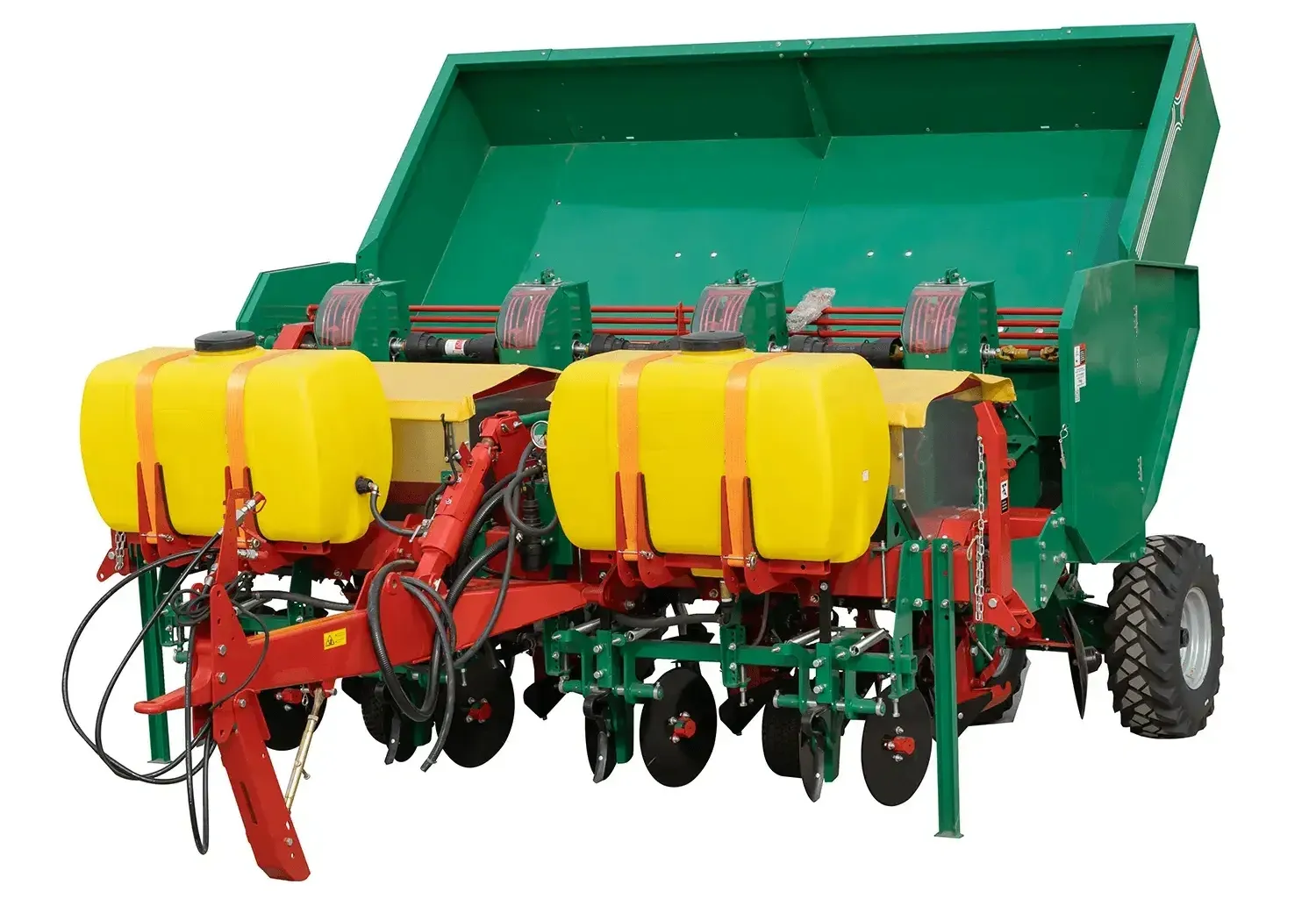

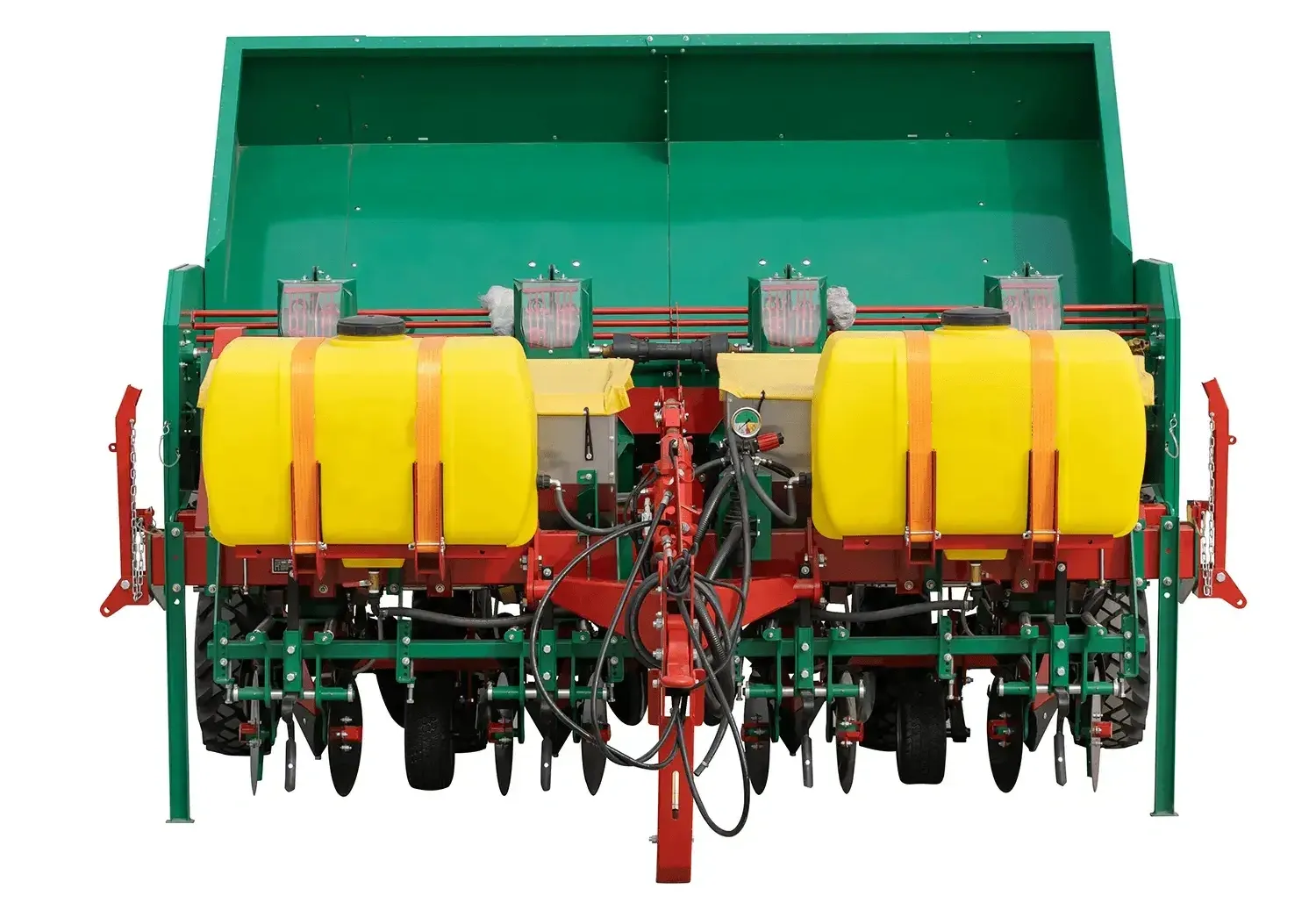

This potato seeder features a robust structure for a variety of soil types and climates, precision seeding technology for uniform growth, and designed for large-scale potato farming. It includes a pest control system and is equipped with our largest seed, fertilizer and pesticide hoppers. The Loosening the soil unit of a large 3 point hitch potato planter features precise furrowing discs and soil loosening resilient tines mounted on a sturdy frame. Designed for efficient furrow cutting and soil preparation, the unit includes adjustable tension springs and depth control, ensuring optimal conditions for seed planting and maximizing agricultural yields. The planting depth control of the potato planter adopts a single-unit depth-limiting contouring mechanism, so that uneven sowing depth caused by factors such as regions, soil quality and the like is solved, and the stability of sowing depth is improved. The soil cover disc assembly for large trailed potato planters is designed for effective post-planting soil cover and ridging. The black round discs are expertly crafted to evenly distribute soil over newly planted potatoes, ensuring proper growing conditions. Mounted on a sturdy frame, this important component can be adjusted to precisely control depth and angle, providing optimal coverage and promoting healthy crop development.

Product Features

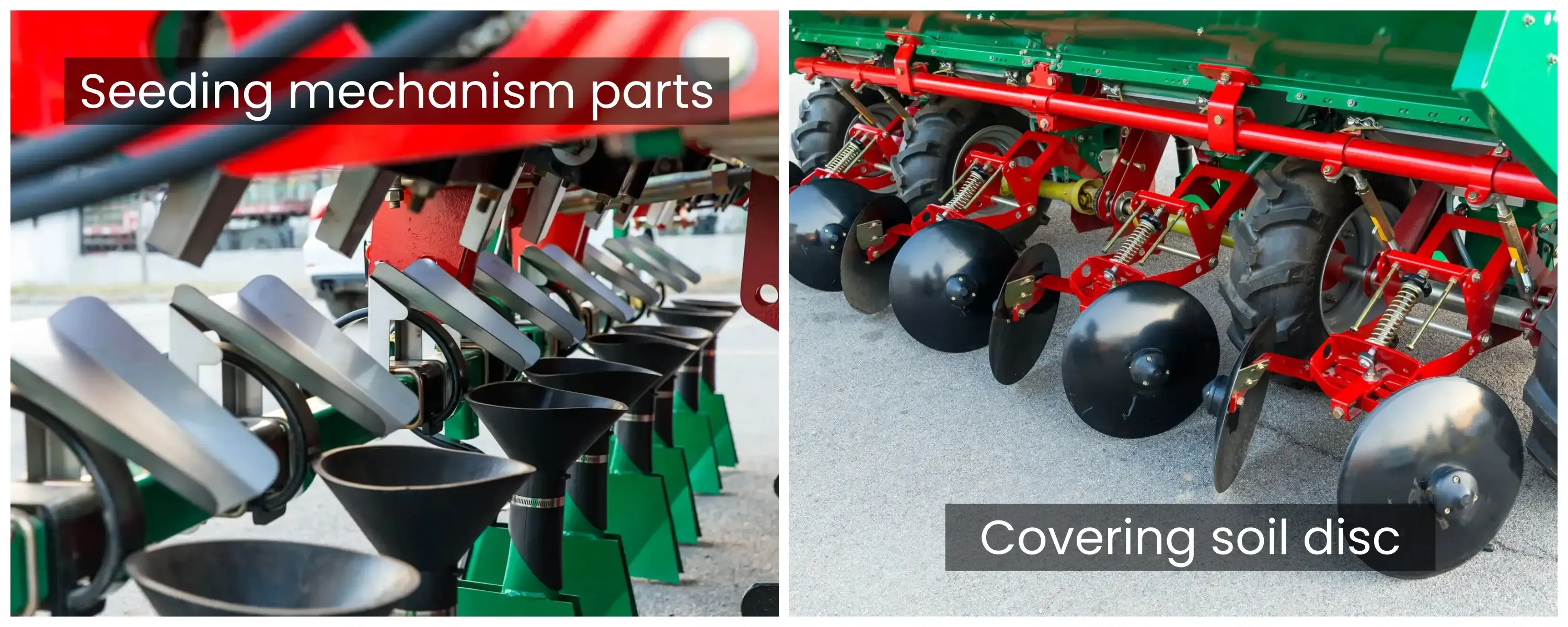

• Precision sowing: The "bowl-spoon" seeding device with independent intellectual property rights and the vibration, shaking and chain mechanism achieve precision sowing without manual intervention. • Greater Planting Capacity: Large seed and fertilizer capacity for longer runs without refills. • Enhanced Efficiency: Allows rapid, efficient planting over large fields. • Versatility: Includes fertilization and pest control systems for multifunctional tasks. • Spraying System: Utilizes PTFE nozzles for higher atomization, improving coverage and pest protection efficiency.

Technical Specification

ModelSG-LCM-4SG-LCMX-4
Dimension(mm)5670*3950*21701810*3890*2710
Weight(kg)36951400
Row Space(mm)900900
Working Width(mm)36003600
Working Rows4 Ridges × 4 Rows4 Ridges × 4 Rows
Seed hopper(L)40002000
Productivity(hm2/h)≥1.33≥1
Fertilize hopper(L)1000700(Optional)
Pesticide hopper(L)700350(Optional)
LinkageTrailedTrailed
Matched power(hp)140-200125-180
