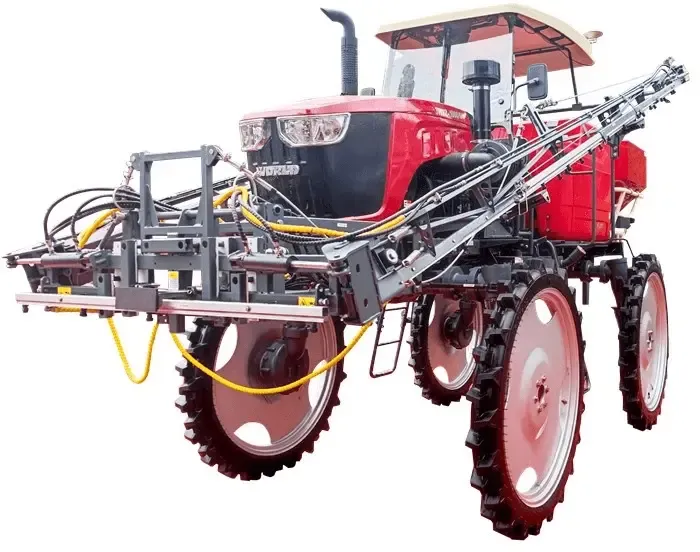

Product Description
Self-propelled boom sprayers can quickly and evenly spray pesticides, fertilizers and other liquid formulations over a large area. The spray volume is evenly distributed, making the control effect more significant. In addition, because it is highly targeted to crops, it can achieve ideal control effects without wasting resources, thereby reducing the amount of pesticides used.
The self-propelled boom sprayer has a wide range of applicability. It is not only suitable for field crops, but also can be used in lawns, nurseries, wall-mounted vineyards and other occasions. It can even be used in specific occasions such as airports, road snow melting, roadside weeding, etc. can play its role.
Product Features
• Equipped with a high-pressure common rail four-cylinder diesel engine made in China, it has strong power, low fuel consumption, low noise and low vibration.
• It is 110 centimeters above the ground and will not harm the crops when spraying tall crops.
• Imported nozzles, leading pressure adjustment range in the industry, good atomization effect, suitable for grain and cash crops and strong adaptability. The working efficiency is 3 to 10 pa/h.
• It adopts four-wheel drive, the front and rear wheels travel on the same track, and is equipped with a harvest pole to reduce the crushing of crops.
• Optional intelligent spraying system and driverless system.
Technical Specification
| Model | 3WPZ-700A | 3WPZ-1000 |
|---|---|---|
| Dimensions(mm) | 5000*1800*3000 | 5300*1900*3000 |
| Weight(kg) | 2200 | 2300 |
| Minimum Ground Clearance (mm) | 1100 | 1100 |
| Wheelbase(mm) | 1500/1800 | 1500/1800 |
| Front/Rear Wheelbase(mm) | 2300 | 2300 |
| Drive Mode | Four Wheel Drive | Four Wheel Drive |
| Steering Mode | Four Wheel Steering | Four Wheel Steering |
| Applicable Seedling Height(mm) | 0-1200 | 0-1200 |
| Wheel Pass Spacing(mm) | 250/300 | 250/300 |
| Spray Boom Length(m) | 14.1 | 20 |
| Spray Width(m) | 16 | 22 |
| Box Capacity(L) | 700 | 1000 |
| Standard Wheels | 1160*128 Rubber Inflatable Wheels | 1440*128 Rubber Inflatable Wheels |
| Optional Wheels | 1150*100 Solid Rubber Wheels | 1440*100 Solid Rubber Wheels |
