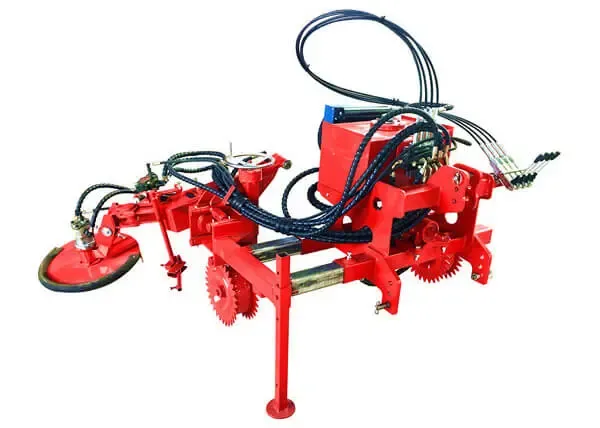

This orchard mower features hydraulic obstacle avoidance for sensitive and gentle operation, effectively clearing inter-row weeds while protecting plants.
Adjustable width. The equipment width can be adjusted according to different planting row spacings.
The blade disc can be tilted down 15° and up 75°. It can be used with or without ridges and can adapt to different ridge angles.
Remote control of multi-way valves, the operator can control all actions in the cab, easy to operate.
With its own hydraulic system, it has low requirements for tractors. It can be used with a three-point hitch and rear output. It is equipped with a hydraulic oil cooler to effectively control the system temperature.
It can be equipped with a variety of auxiliary tools to realize multiple functions such as weeding, loosening the soil, and plowing the land.
Technical Specification
Model
TSGY-01
Matched Power(hp)
45-60
Minimum Row Spacing(cm)
200
Minimum Crop Spacing(cm)
40
Dimensions(mm)
1885*2056*1035
Weight(kg)
330
Maximum Distance From Tractor Forward Centerline to Crop(cm)
