Product Description

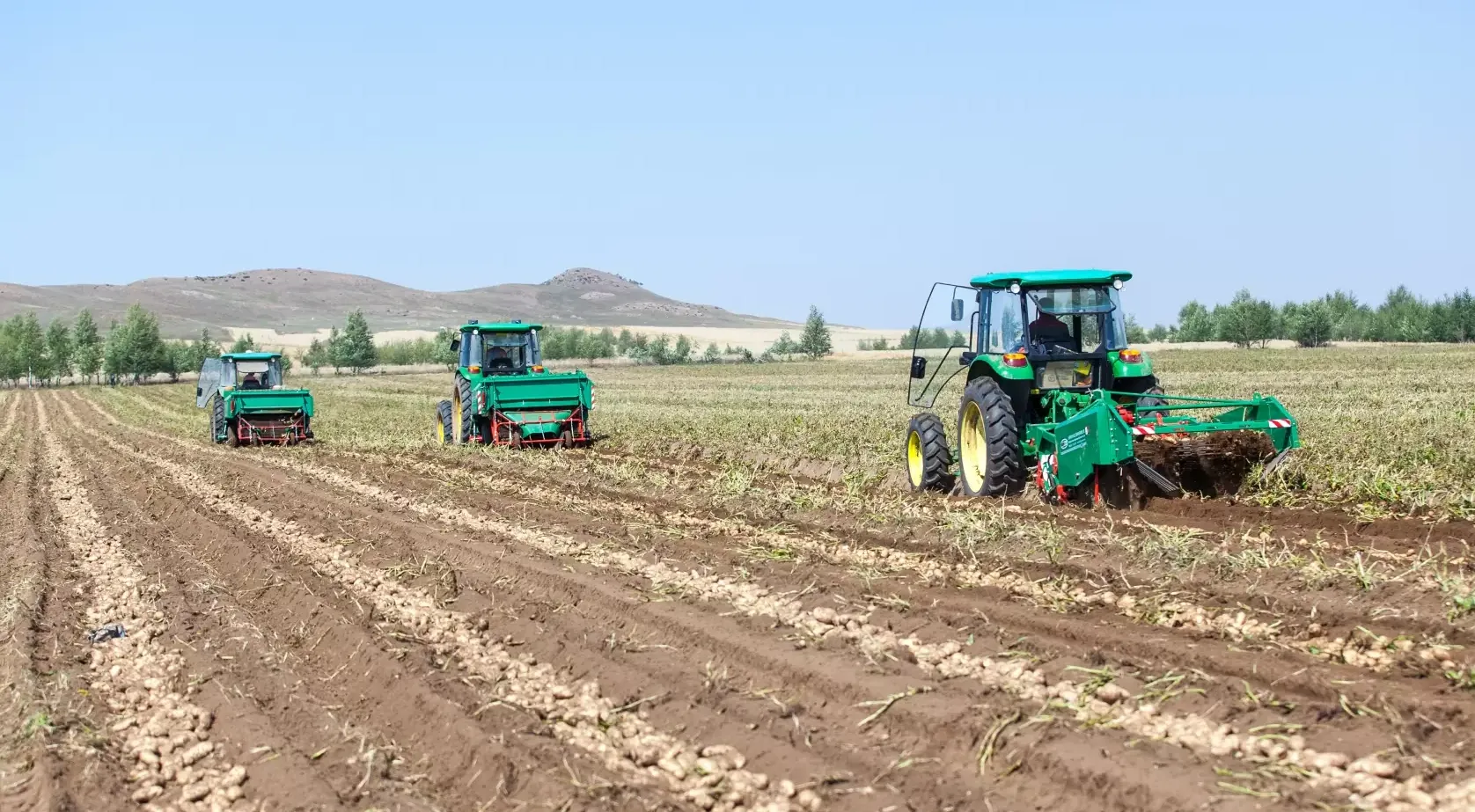

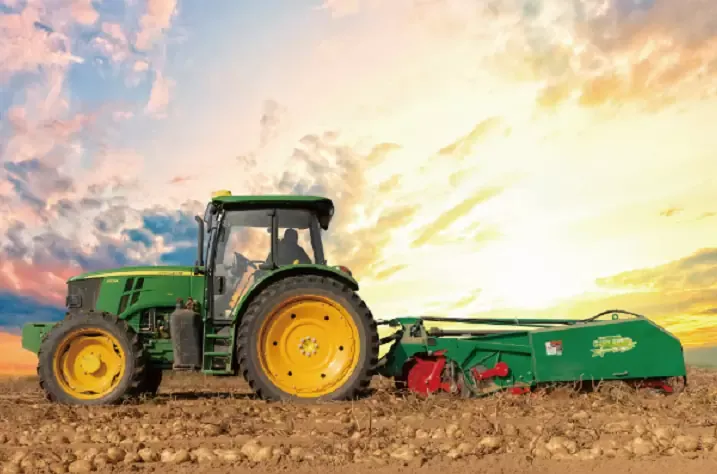

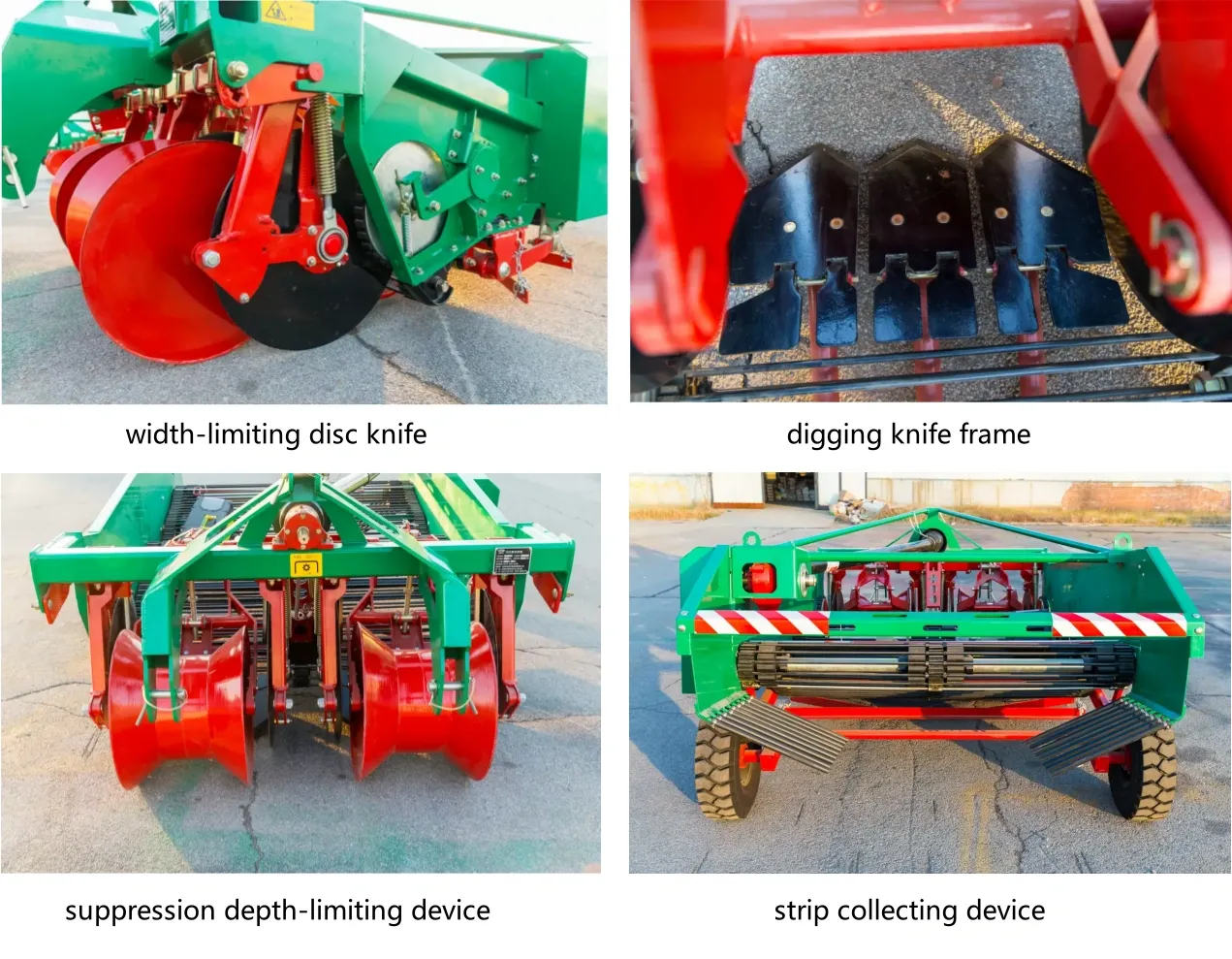

The medium-size potato harvester is equipped with a three-point suspension system, which can be easily connected to a tractor and towed through the field. It is capable of working two rows at a time and covering two ridges in the field at a time, harvesting the crop quickly and easily with minimal labor and cost. It can achieve adjustable row spacing and complete the digging, conveying separation and strip collection operations in one go. The main components include a width-limiting disc knife consisting of a disc knife, a fixing frame, a compression spring, and an adjustment device; a digging component consisting of a knife frame, a knife bar, a main shovel, an auxiliary shovel and a digging angle adjustment mechanism; a suppression depth-limiting device consisting of a contoured depth-limiting wheel, a bracket, and an adjustment mechanism; a grid-type conveying separation screen consisting of a toothed belt, steel bars, a driving wheel, a passive wheel and a shaking wheel, and a strip collecting device.

Product Features
• Efficient Operation: It can efficiently dig and collect potatoes, shortening the harvesting time and increasing yield.
• Stable Structure: The three-point suspension structure is more stable and secure when connected to the tractor, adapting to different terrains.
• Multifunctionality: It can work in various different row and ridge configurations, making it suitable for use under various field conditions.
• High Potato Recovery Rate: Efficiently separates potatoes from the soil, reducing missed harvests.
• Low Damaged Potato Rate: Utilizes a soft conveyor belt and gentle vibration screening to reduce the damage to potatoes.
• Low Peeled Potato Rate: Optimizes the mechanical structure and materials to reduce abrasions and breakages of potatoes during the harvesting process.

Working Video
Technical Specification
Model | 4UX-170A |
---|
Linkage | Three point-linkage |
---|
Dimensions(mm) | 3875*2110*1255 |
---|
Weight(kg) | 1580 |
---|
Matched Power(ph) | 120-160 |
---|
Applicable Ridge Width(mm) | 850-900 |
---|
Working Rows | 2 ridges 2 rows |
---|
Working Width(mm) | 1550 |
---|
Digging Depth(mm) | 150-300 |
---|
Potato Recovery Rate(%) | ≥96 |
---|
Damaged Potato Rate(%) | ≤1.5 |
---|
Peeled Potato Rate(%) | ≤2 |
---|
Working Efficiency(mu/h) | ≥7 |
---|
