Product Description

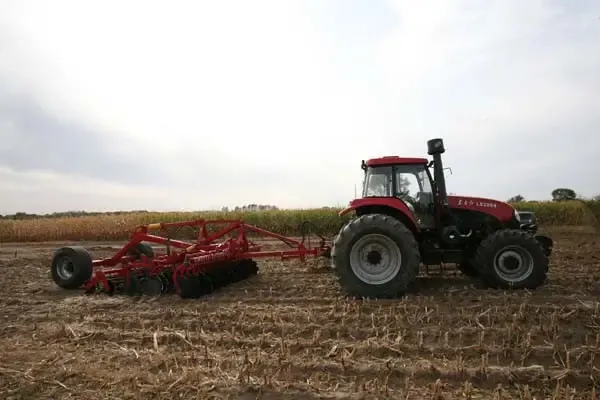

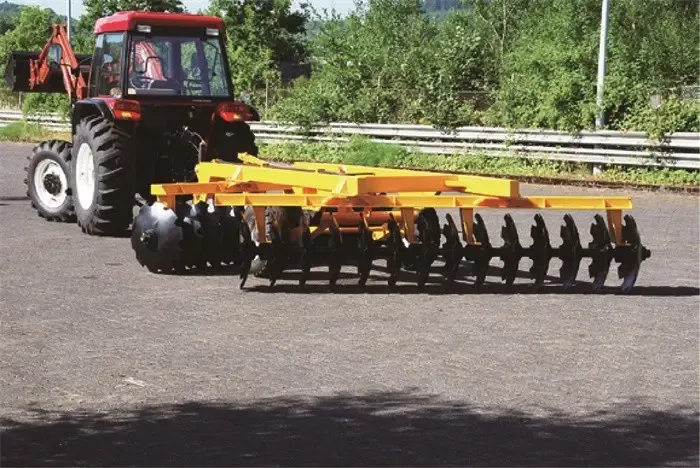

1BZ series traction offset heavy harrow is mainly suitable for stubble removal before tillage, breaking up the surface compaction, chopping straw and returning it to the field, breaking up the soil after tillage, leveling and conserving moisture, etc. It can also replace the plow for soil tillage on the cultivated land. It is mainly hung at 3 points for tractor pulling operations, with high operating efficiency, reasonable power utilization, strong soil penetration and soil breaking ability, flat surface and loose soil after harrowing, and has strong adaptability to heavy clay soil, wasteland and plots with many weeds.

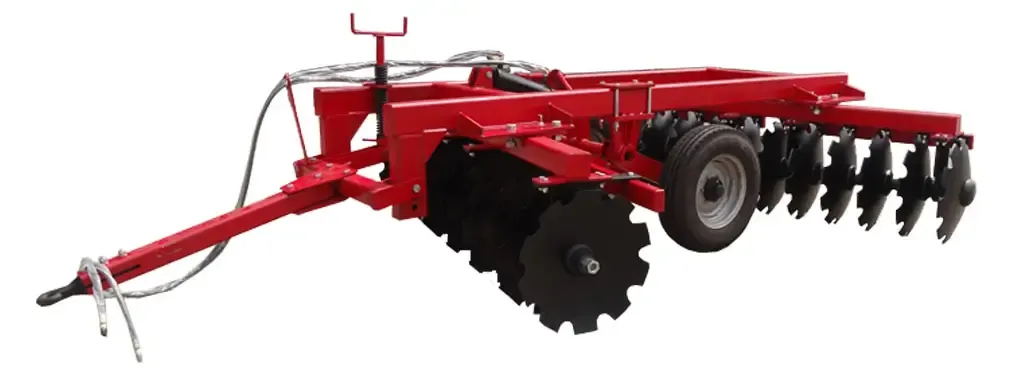

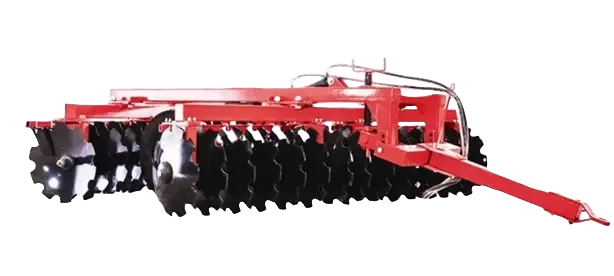

This harrow adopts international advanced design concept, with steel structure as the main harrow body. The whole machine adopts modular structure, with square welded tube integral rigid harrow frame as the main body, equipped with hydraulic lifting and lowering pneumatic rubber transport wheels, spring leveling mechanism and sealed thrust rolling bearings dedicated to disc harrows, reasonable structure, strong and durable, convenient transportation, small turning radius, easy adjustment, easy maintenance, is the most advanced disc harrow product on the market. This heavy harrow is particularly suitable for cultivating large areas of farmland.
Our company also has other disc plough of different models for sale, ensuring high quality and reasonable prices. Please feel free to send us an email with inquiries.


Technical Specification
Model | 1BZ-1.8 | 1BZ-2.2 | 1BZ-2.5 | 1BZ-3.0 | 1BZ-3.4 |
---|
Dimensions(mm) | 4800*2000*1340 | 4820*2440*1340 | 5320*2880*1340 | 5320*3320*1340 | 5820*3760*1340 |
---|
Weight(kg) | 1050-1100 | 1250-1300 | 1380-1430 | 1500-1550 | 1650-1700 |
---|
Working Width(m) | 1.8 | 2.2 | 2.5 | 3 | 3.4 |
---|
Working Depth(mm) | 200 | 200 | 200 | 200 | 200 |
---|
Disc Space(mm) | 230 | 230 | 230 | 230 | 230 |
---|
Qty. of Disc(pc) | 16 | 20 | 24 | 28 | 32 |
---|
Dia. of Disc(mm) | 660 | 660 | 660 | 660 | 660 |
---|
Ground Clearance(mm) | >160 | >160 | >160 | >160 | >160 |
---|
Productivity(ha/h) | 1.1 | 1.3 | 1.4 | 1.7 | 1.9 |
---|
Matched Power(hp) | 44-55 | 50-65 | 55-75 | 60-90 | 65-100 |
---|
Linkage | Trailed | Trailed | Trailed | Trailed | Trailed |
---|
