Product Description

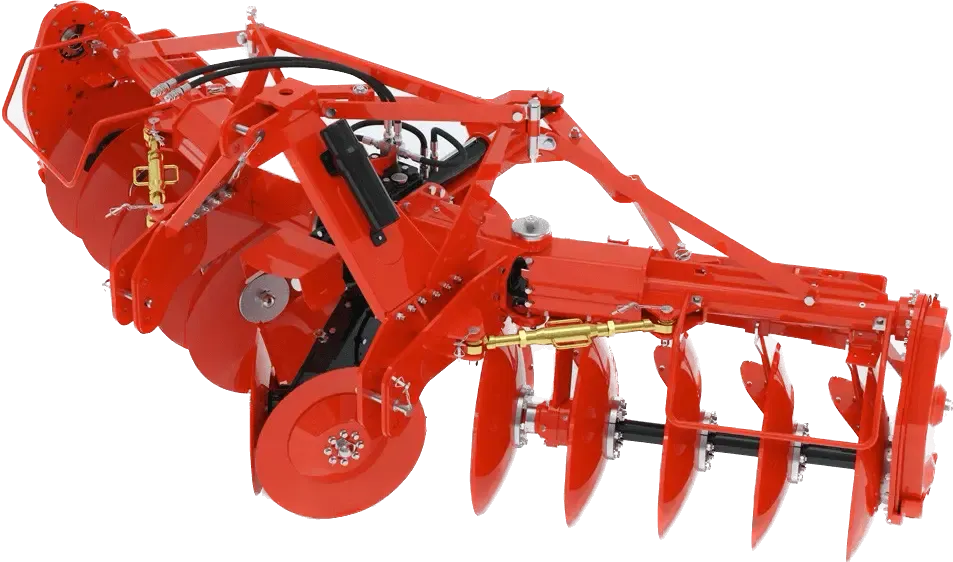

This driven disc plow using center and side drives, straw and soil can be easily plowed; Compared with ordinary plows, it can plow deeper and effectively improve the aeration and water permeability of the soil; Using the disk rotation method, it is suitable for use in rice fields or wet fields with a lot of straw and weeds; According to the working conditions, the width of both sides of the plow can be folded to the same width, which is very convenient during operation and movement, and the replacement of accessories and maintenance is also very simple; The power transmission at the joint uses a two-section curved joint, which reduces the connection angle and reduces noise and overload rate.

Product Features

• Drive disc plow adopts a two-stage folding design structure. When plowing the land, the disc plowing angle can be freely adjusted according to field conditions. • The whole machine adopts a larger gearbox reinforced frame design, which can be matched with a high-horsepower tractor. • Increase the diameter of the disc with a 60 cm diameter, and the maximum working depth can reach 28 cm. • Use a drive disk harrow in plots with wet fields or overgrown weeds, which is not blocked and has high working efficiency.

Working Video

Loading

Technical Specification

Model1BJXD2.5(10)1BJXD3.0(12)1BJXD3.5(14)
Maximum Plowing Width(mm)250030003500
Plowing Depth(mm)180-200180-200180-200
Weight(kg)83011251200
Matched Power(hp)70-9090-100100-140
Disk Diameter(mm)580580580
Diameter of Central Disc(mm)520520520
