Product Description

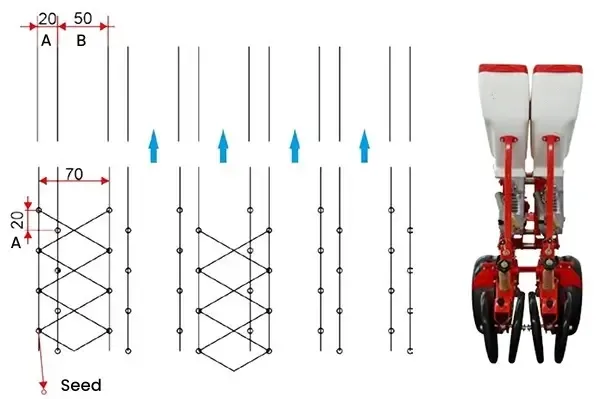

A20 series double-row air-suction precision seeder, the row spacing and linear distance can be adjusted according to the plant type, the spacing between seed strips in row A is designed to be 20cm, and the spacing between row B is adjustable from 50 to 90cm, and each row of fertilizer is distributed in the middle of the plant to improve utilization.Through reasonable layout and planting patterns that increase the number of plants per unit area, not only can resource competition between crops be avoided, but productivity can also be increased by 15-20%.
Product Features
• Versatile: one operation can complete stubble clearing, deep loosening, sowing, pressing and other processes
• Precision sowing: Through pneumatic seed suction technology, single or multiple grains can be drilled to reduce seed waste
• Adaptable: can sow seeds of different shapes, sizes and weights, including corn, soybeans, sorghum, wheat and other grains
• Adjustable sowing depth: Sowing depth can be adjusted according to crop needs and soil conditions
• Adjustable plant spacing and row spacing: plant spacing and row spacing can be adjusted according to crop growth habits and field management needs
• Intelligent control: equipped with intelligent control system, real-time monitoring of sowing status, and improved sowing accuracy
Technical Specification
| Model | 2BMYFQ-2DX2 | 2BMYFQ-4DX2 | 2BMYFQ-6DX2 |
|---|---|---|---|
| Number of Fertilizer/Seeder | 2/4 | 4/8 | 6/12 |
| Dimensions(mm) | 2000*1800*1800 | 2000*3900*1800 | 2300*5800*1800 |
| Working Width(m) | 1.4-1.8 | 2.8-3.6 | 4.2-5.4 |
| Working Depth(mm) | 0-100 | 0-100 | 0-100 |
| Space Between Rows(A/B)(cm) | 20/50(Adjustable) | 20/50(Adjustable) | 20/50(Adjustable) |
| Fertilizer Hopper Volume(L) | 200*2 | 200*4 | 200*6 |
| Seed Hopper Volume(L) | 40*4 | 40*8 | 40*12 |
| Working Speed(km/h) | 4-8 | 4-8 | 4-8 |
| Matched Power(hp) | 80-130 | 130-180 | 160-280 |
